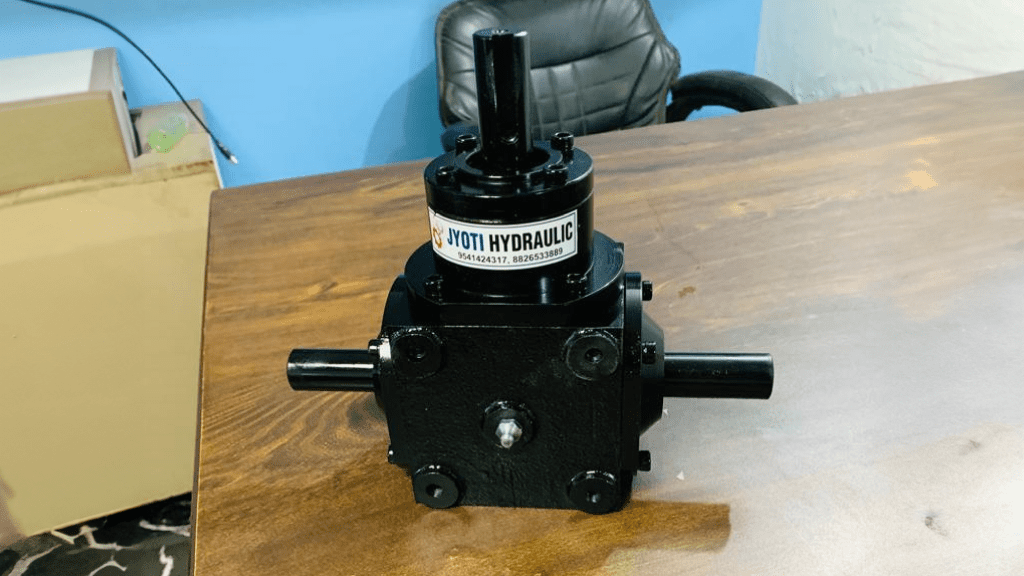

90° Bevel Gear Box

• Engineered for 90-degree motion transfer in mechanical systems
• Ideal for compact spaces and right-angle drives
• Designed using high-quality materials such as alloy steel and cast iron
• Delivers smooth torque transmission with minimal power loss
• Resistant to wear, overload, and environmental factors
• Manufactured with strict quality control for consistency and precision
• Available in multiple ratios and torque capacities
• Long operational life with minimal maintenance requirements
• Proven performance in heavy-duty and high-speed machinery
• Supports customized configurations for diverse industrial needs

Applications of 90° Bevel Gear Boxes

Jyoti Hydraulic’s 90° Bevel Gear Boxes are used across a wide range of industries and mechanical systems. These include:

• Material handling conveyors in factories and warehouses
• Automation machines and industrial robots
• Textile spinning and weaving machinery
• Agricultural machinery and implements
• Construction equipment and hydraulic systems
• Food processing machines with compact layouts
• Printing presses and packaging units
• Power transmission systems in compact spaces

Technical Specifications – 90° Bevel Gear Box by Jyoti Hydraulic

• Gear Type: Spiral bevel or straight bevel based on requirement
• Gear Ratio Options: Available in 1:1, 2:1, 3:1 (custom ratios available)
• Mounting Type: Foot mounted, flange mounted, or universal mounting
• Input and Output Angle: Right angle configuration (90 degrees)
• Material Used: Hardened and ground alloy steel for gears
• Housing Material: High-grade cast iron or aluminum alloy
• Input Speed: Supports up to 1800 RPM or customized
• Torque Capacity: Up to 1000 Nm depending on application
• Shaft Type: Solid shaft or hollow shaft available on request
• Lubrication: Grease packed or oil bath system
• Sealing Options: Oil seals or labyrinth seals for protection
• Finish: Powder-coated or custom surface treatment
• Operating Temperature: Ranges from -10°C to +80°C
• Noise Level: Low noise output with vibration damping

Features of Jyoti Hydraulic 90 Degree Bevel Gear Box

• Precision-machined gears for smooth and silent operation
• Compact design ensures efficient space utilization
• Rigid housing for enhanced structural strength
• High torque output with minimal backlash
• Easy installation with universal mounting options
• Corrosion-resistant surface treatment for long life
• Customizable as per customer specifications
• Energy-efficient power transmission
• Suitable for continuous-duty industrial operations
• Enhanced load-bearing capacity for heavy applications

Advantages of Using Our 90° Bevel Gear Box

• Supports right-angle power transmission where space is limited
• Improves efficiency and mechanical alignment in complex systems
• Offers flexible installation options with various mounting types
• Reduces downtime due to its long-lasting build and easy maintenance
• Manufactured to match national and international quality standards
• Backed by strong technical support and post-sales assistance
• Delivers consistent performance across various temperature conditions
• Designed to minimize vibration, heat, and operational noise
• Suitable for both indoor and outdoor industrial environments
• Cost-effective power transmission solution for long-term use

Customization Options Available

At Jyoti Hydraulic, we understand that every customer has different operational needs. That’s why we offer flexible customization options, including:

• Gear ratios tailored to specific torque and speed requirements
• Input and output shaft orientation as per layout
• Flange design customization for machine integration
• Shaft options: solid, hollow, keyed, or spline-based
• Special coatings or corrosion-resistant materials
• Custom packaging for export or bulk delivery
• High-speed versions for dynamic machinery
• Compatibility with electric motors or hydraulic drives

Industries We Serve with Our Bevel Gear Boxes

• Automotive manufacturing and assembly units
• Agricultural equipment and tractor systems
• Industrial automation and control systems
• Food and beverage processing industries
• Power plants and turbine maintenance setups
• Textile weaving, spinning, and finishing machines
• Construction and mining equipment manufacturers
• Printing and packaging equipment industries
• Material handling and conveyor system suppliers

What Makes Jyoti Hydraulic a Preferred Manufacturer in India

Jyoti Hydraulic has earned its reputation by delivering robust and reliable gearboxes across industries. Here’s what sets us apart:

• In-house manufacturing with strict quality checks
• Use of certified materials and precision tooling
• Quick production and delivery turnaround
• Skilled team with experience in gearbox engineering
• Competitive pricing with no compromise on quality
• Pan-India supply and logistics network
• Dedicated customer support for queries and after-sales
• Compliance with national and international standards
• Transparent business policies and ethical practices

Customer Testimonials

• “We installed Jyoti Hydraulic’s 90-degree bevel gearbox in our conveyor drive, and the performance has been outstanding. No vibration and smooth operation.” – Rakesh Mehra, Industrial Automation Engineer, Gujarat
• “Excellent gearbox quality with customizable options. Jyoti Hydraulic is definitely our long-term supplier for all mechanical transmission needs.” – S. Kumar, Production Head, Chennai

Looking for the Best 90° Bevel Gear Box Manufacturer in India?

If you need a trusted partner for high-performance right-angle gearboxes, Jyoti Hydraulic is your ideal choice. With our engineering excellence, customization capabilities, and reliable product support, we help industries achieve seamless power transmission in space-limited systems.

• Contact us today for inquiries or technical consultation
• Get a competitive quote with fast delivery assurance
• Boost your equipment’s efficiency with Jyoti Hydraulic’s bevel gear technology
