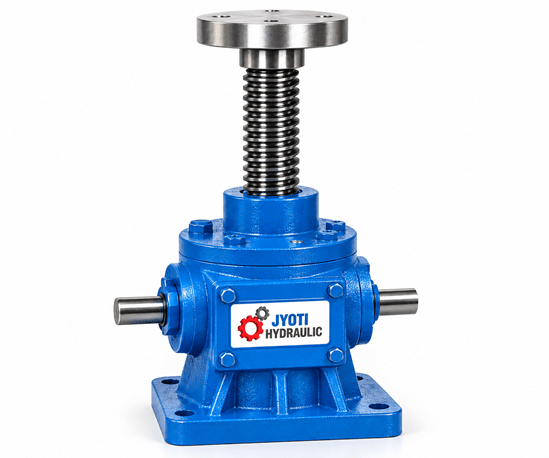

Small height adjustments can make a considerable difference when setting up machinery or aligning a workpiece. A worm gear screw jack converts rotary input into linear travel, allowing an operator or drive system to adjust the position of a supported load.

This mechanism is useful in equipment where gradual movement and a defined lifting stroke are required. Depending on the selected arrangement, screw jacks can form part of a single lifting point or an engineered system with several connected lifting points.

How Does a Worm Gear Screw Jack Work?

The input shaft turns a worm, which drives a worm wheel inside the gearbox. This rotation operates the screw mechanism to produce linear movement. In a translating screw arrangement, the lifting screw moves through the jack body. In a rotating screw arrangement, the screw rotates while a travelling nut moves along its length.

The gear ratio and screw lead determine how far the lifting element travels for each input revolution. These factors also affect input torque and operating speed, making them important considerations when selecting a manual or motor-driven system.

Key Benefits

• Controlled height adjustment: Useful for raising, lowering and positioning machine components.

• Mechanical lifting principle: The jack itself uses a gear-and-screw mechanism without a hydraulic lifting circuit.

• Equipment integration: Can be considered for lifting assemblies, adjustable platforms and production machinery.

• Drive flexibility: Manual or motor-driven operation may be selected according to the available configuration.

• Multiple lifting-point arrangements: Screw jacks can be incorporated into a suitably designed, mechanically linked lifting system.

Typical Applications

A 2.5 ton worm gear screw jack may be considered for:

• Adjustable work tables and assembly fixtures.

• Conveyor height adjustment.

• Industrial platform positioning.

• Machine component alignment.

• Packaging equipment adjustments.

• Material handling assemblies.

Suitability depends on the actual load, stroke, operating speed and supporting structure. Uneven loading, side forces and frequent operation require particular attention during selection.

Product Details and Selection Requirements

How to Select the Right Screw Jack

Start with the total load, including the weight of the platform, fixture and any moving components. For systems using several jacks, evaluate how the load is distributed across each lifting point.

Next, specify the required travel and operating speed. A longer extended screw may require additional checks for stability under compression. The mounting arrangement should keep the load aligned with the screw axis, with suitable external guidance wherever lateral forces may occur.

Operating frequency also matters. A jack used for occasional adjustment has different requirements from one that runs repeatedly throughout a production shift. Providing this information helps identify a suitable drive and operating arrangement.

Worm Gear Screw Jack 2.5 Ton Price

The price depends on the selected stroke, screw arrangement, drive requirements, mounting accessories and order quantity. Contact Jyoti Hydraulic with your application details to request a quotation for the required configuration.

For an accurate enquiry, include the load per jack, lifting height, desired speed, installation orientation and number of lifting points.

Frequently Asked Questions

Can this screw jack lift 2.5 ton in every application?

The nominal capacity alone does not establish suitability for every installation. Confirm the permissible lifting load for the required stroke, speed, duty cycle and mounting conditions.

Is a worm gear screw jack self-locking?

Self-locking depends on the gear-and-screw configuration and operating conditions. Confirm the selected model’s load-holding characteristics and whether a brake or another holding arrangement is required.

Can it operate with an electric motor?

Motor-driven operation is possible with a compatible configuration. Motor selection should account for the input torque, lifting speed, starting load and operating frequency.

Can several screw jacks lift one platform?

Yes, screw jacks can be incorporated into a coordinated lifting system. The design must account for load distribution, alignment, connecting components and platform guidance.

What maintenance does it require?

Follow the supplied maintenance instructions for lubrication and inspection. Regularly check the screw, mounting fasteners, alignment and moving components for wear or damage.

Request a quotation from Jyoti Hydraulic for the Worm Gear Screw Jack 2.5 Ton suited to your lifting and positioning requirements.
